Scope

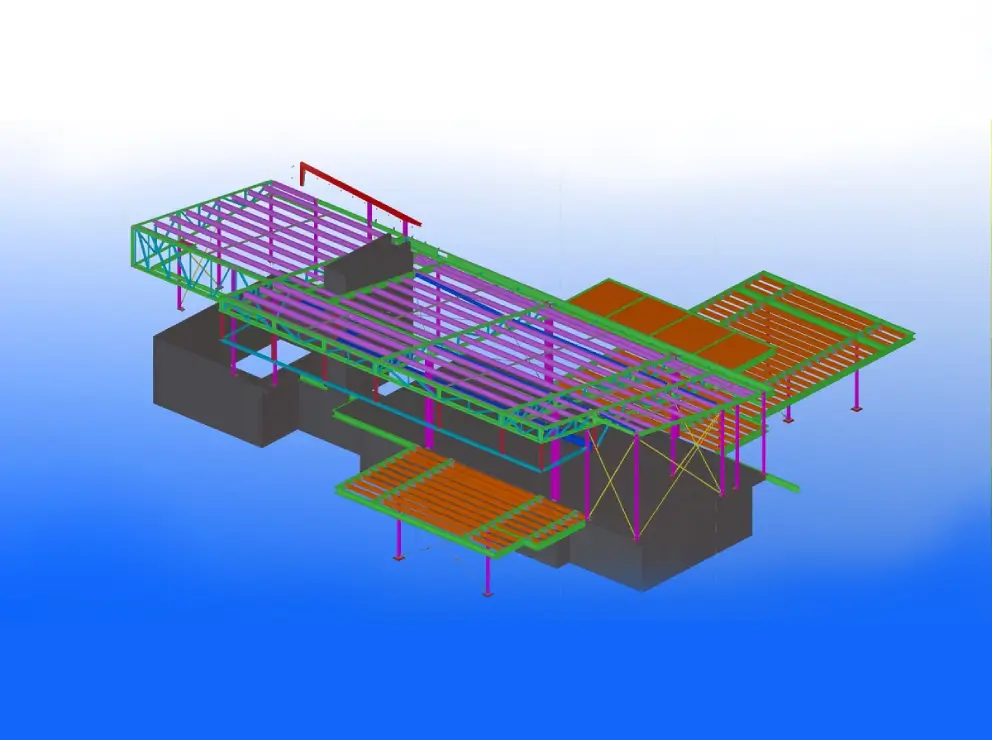

The scope of the work was to create Structural Steel Shop Drawings and Fabrication drawings by developing a virtual steel model with required reports to fulfill fabrication and installation requirements. This included:
- Lower Ground and Footings Plan
- Ground Floor Plan
- Roof Framing plan
- Elevations and Sections Sheet#1
- Elevations and Sections Sheet#2
- Ground Floor Details Sheet#1
- Ground Floor Details Sheet#2
- Ground Floor Details Sheet#3
- Ground Floor Details Sheet#4
- Ground Floor Details Sheet#5
- Roof Framing Details Sheet#1
- Roof Framing Details Sheet#2
- Roof Framing Details Sheet#3
- Roof Framing Details Sheet#4 Including Truss Summary
- Cast In Plates
- Structural Steel Details
- HD Bolt Plan
- Erection plan
- Sections and Details
- Assembly Drawings
- Part Drawings
- Reports (Assembly List, Part List, Bolt List, etc.)
Challenges
The client was outsourcing a project for the first time and required a quick turnaround time. Furthermore, there were some discrepancies in the provided CAD files. However, with our professionalism and the quality of our deliverables, we were able to complete the project to the satisfaction of the client.
Project Details
-
Project Name Structural Steel Fabrication Drawings for Australian Residential House -
Services Type Structural Steel Detailing | Structural 3D Modelling | Steel Shop Drawings | Fabrication Drawings -
Tonnage of Steel 28.58 tonne -
Deliverables Structural steel 3D Model, Set of Fabrication Drawings consisting of the HD Bolt plan, Erection plan, Assembly, part Drawings, NC file, NC .dxf file, & Reports. -
Project Location Australia
