Client Summary
We completed this project for a survey company in New-Zealand. The client is two-decade old survey company having extensive knowledge of Surveying industry.
Scope

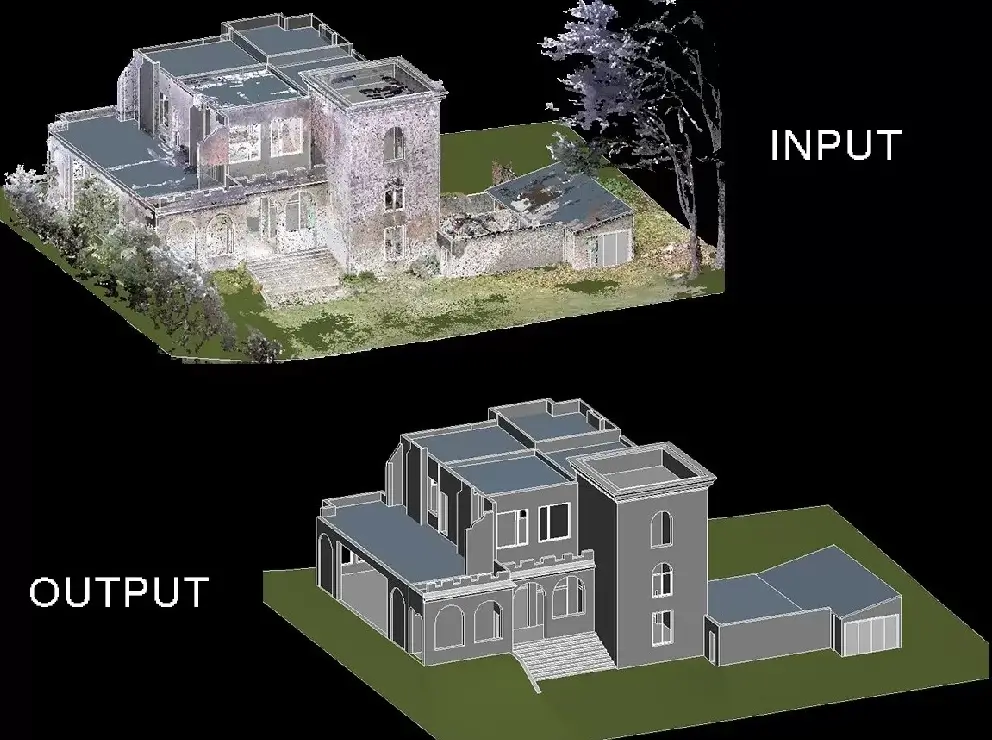

We had to create generic modelling of the building in Revit 2019, from point cloud data which included:
- Walls
- Doors
- Windows
- Floors
- Ceilings
- staircase and railings
- roof
- Wainscoting and fireplaces.
We successfully completed the project within a quick turnaround time of 2–3 working days.
Challenges
Since this was a generic mass Revit model created from the scans in Revit 2019, there were no major challenges faced during the execution of the project.
Project Details
-
Project Name Cargill Castle -
Building Type Castle -
Type of Project Scan to Revit Model and 2D CAD Floor Plan -
Inputs – Matter port data– Pdf of floor plan and ceiling plan– Images of scan -
Deliverables LOD 200 Model in Revit 2019 & 2D Floor Plan -
Services Scan to BIM Services | Floor Plan Services -
Turnaround Time 2-3 Working Days -
Project Location New Zealand
