Client Summary
The client is a product manufacturing company in Australia which caters to plumbing and safety solutions since five decades.
Scope
The client gave us the product information and the list of products to be created. We completed creating 18 products within 7 working days. The client initially requested us to create 2 products, after which we were given the other 16 products to create, depending upon our work quality.
Challenges
- The main challenge was to match the dimensions provided in the file given by the client.
- Modelling the intricate detailing of the products – voids, void sweeps, void extrusions, and blends etc. as per the dimensions was time consuming.
- After completion of 2 products, a list of 16 more products were provided to us for further Modelling.
Project Details
-

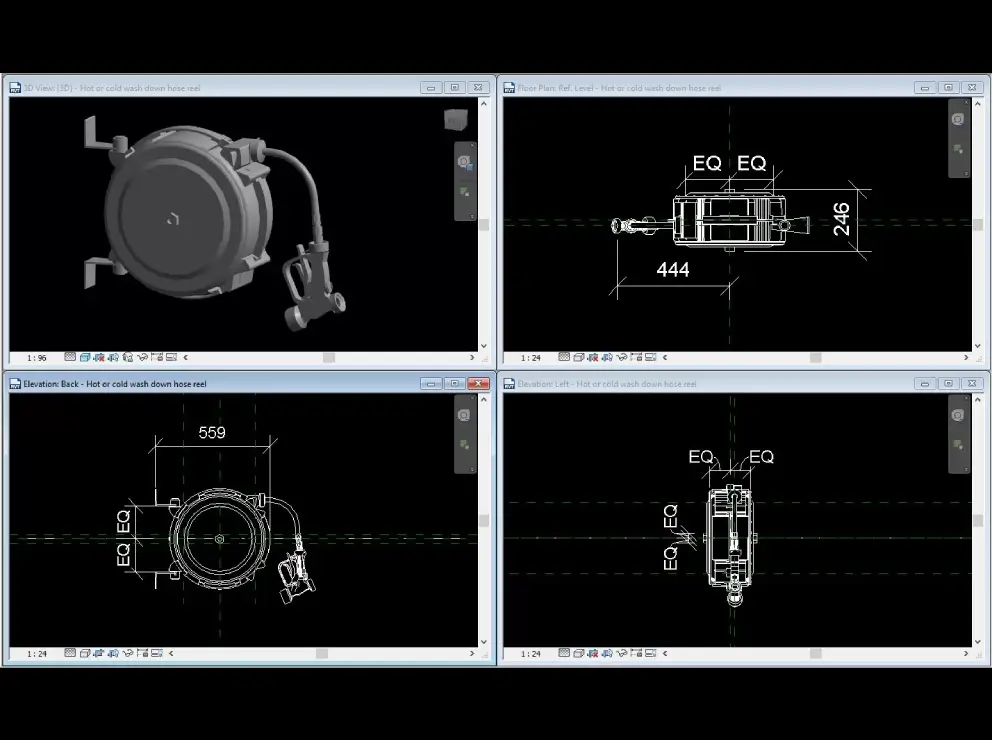

Project Name Hose Reel Generic Revit Family Creation -
Services Type Generic Revit Content Creation for 18 products -
Product Type Adjustable Gunner and Delrin Trigger Spray -
Inputs Pdfs, product information -
Deliverables Revit files and DWG, IFC, and FBX for the products -
Services Revit Family Creation Services
-
Turnaround Time 7 working days -
Year of execution September 2019 -
Project Location Australia
