Architectural 3D Modeling of a Residential Building for Renovation

Architectural 3D Modeling of a Residential Building for Renovation

Project Information

Project NameArchitectural 3D Modeling of a Residential Building for Renovation
Services TypeRevit Modeling | Construction Drawings
DisciplinesArchitecture
Area800-900 sq. m., 85 sq.m. (Cabana)
DeliverablesDrawings in AutoCAD & PDF format, 3D Revit model
Project LocationAustralia

Project Objective and Summary

We were required to convert Existing drawings of residential building to renovation/proposed drawings in Revit for an Australian Client.

• Type of building: Residential
• Type of Project: Interior drawings
• Floors: Ground Floor & First Floor
• Units of measurement: MM
• Software Version: Revit 2021

Following inputs were received:
• Existing marked up plans in pdfs
• Information to be used for drafting standards
• Data/Information to be added to the sheets

The process that was followed:
Converting Existing drawings to renovation/proposed interior detail drawings.

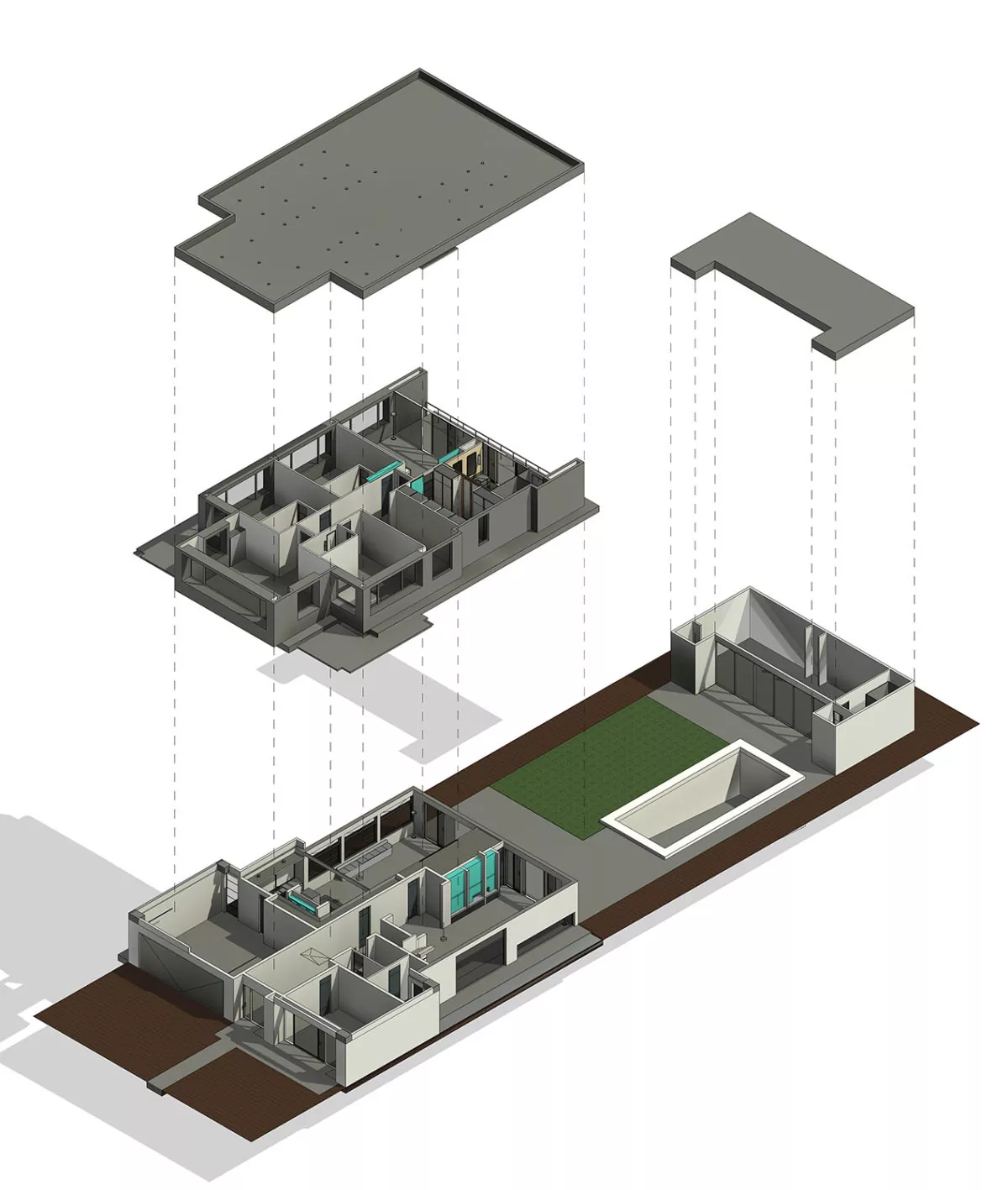

Step 1: 3D Modelling of the house in Revit.
Step 2: Creating following Interior drawing sheets

Ground Level-
• All kitchen joinery & Island
• New family and meals area joinery Inc. Window seat
• New Living and cellar/Bar joinery
• Cabana
Level 1-
• Master Bed/Ensuite/WIR
• All bedrooms Ensuite
• All Bedroom robes

Additional sheets:
• New joinery drawings to replace existing drawings for all above areas.
• 5 perspective views for preliminary and final drawings

Additionally, for Cabana, we also created following Interior detail drawing sheets
• Floor plan
• Interior Elevations – Kitchen, Lounge area and bathroom 1:20
• Joinery Elevations – Kitchen, Island and bathroom 1:50
• Joinery Sections – showing depths of drawers, etc. 1:50
• Handle detail 1:50

Conclusion

The client was pleased with quality of the deliverables that were delivered in the stipulated timespan.
